1.4 Megapixel Fluorescent Microscope Camera MCX151

MCX151 is a 1.4 megapixel scientific CCD microscope camera equipped with high sensitive Sony CCD ICX285. With 16 Mb buffer memory, It offers progressive scan, high frame rates (20 frames per second). Thanks to a large format 2/3" CCD sensor, the MCX151 offers a large field of view. The robust multi-camera synchronization function makes it easy to work with 3 more Pixit cameras together. The CCD design ensures high-uniformity sensor output, a wide dynamic range and a lower noise environment, ideal for low-light and fluorescence microscopy.



* Monochrome Camera Model: MDX151M.

Features

  • Low noise, high sensitivity and high frame rate

  • Built-in buffer memory, more stable data transimission

  • Multi-camera Synchronization, up to 4 cameras in 1 PC

  • Come with user-friendly capturing software Pixit Integrator

  • Twain and DirectShow driver compatible

  • Perfect dust-proof structure and aluminum alloy body design

  • Compatible with Windows XP 32bit, Windows 7 and Windows 8 operation system

Applications

MCX151 is ideal for a wide range of applications including:

  • Robotics

  • Quality control

  • Inspection, surveillance

  • Industrial imaging

  • Machine vision

  • Logistics

Specifications

Model
MCX151
Sensor Type
Sony CCD ICX285, Color
Sensor Size
2/3 inch
Resolution
1.4 MP, 1360x1024
Pixel Size (um)
6.45
Frame Rate
20 fps
Shutter Type
Global
Exposure Control
Auto / Manual / Regional Exposure
Exposure Time
0.1ms~600s
Spectral Response
380~650nm (with IR cut off filter)
Response Rate
1240mV-1/ 30s Accumulation
On-board Buffer
16 Mb
BIN
1x1, 2x2
White Balance
One touch white balance / Manual / Regional white balance
Filter
650nm IR Cut-off Filter
Programmable Control
Speed, Image size, Exposure, Gain, Gamma, Contrast, Black Level, Sharpness, Noise Reduction, Saturation
Software Interface
TWAIN, DirectShow
Status LED
Normally on when power on; blinking when working
Optical Mount
C Mount
Image Format
RAW, BMP,JPG, PNG
Power Consumption
2.5W, Standby: 0.5W
Data Interface
USB 2.0 480Mb/s
Operating System
Windows XP (32bit), Windows 7 (32bit/64bit), Windows 8 (32bit/64bit), Windows 10
Power Supply
USB 5.0V
Working Temp.
0~50℃
Storage Temp.
-20~60℃
Housing
Aluminum CNC sandblasting & anodizing, Customizable
Dimension
101mmx90mmx49mm
Weight
500g

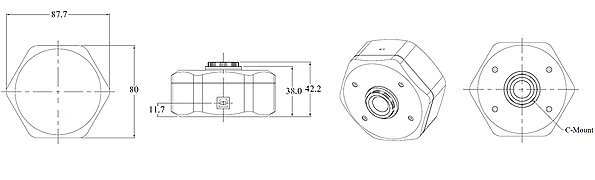

Dimensions
